Center Scope
  • Adapts to any machine spindle with maximum accessibility to the operator.
  • 45X magnification for optical position accuracy of .0001".
  • Single dash line reticule for easy observation of the work reference line.
  • Unique compensation of spindle run-out by adjustment screw.
  • Straight shank 1/2" dia Eye piece angle 60°.
  • Field of view .100" dia Focal length 5/8".
  • Optional Edge Block to locate the edge of any work piece to the spindle axis, and V-Block Gage for precision centering of a V-Block to the spindle for cross axis boring.
Item No. List Price
111-120 Center Scope, in fitted wooden case $476.77
pic missing
.

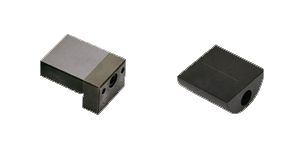

Accessories
Item No. List Price
111-121 Edge Block $81.05
111-122 V-Block Gage $64.36
