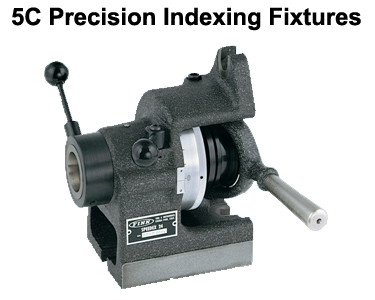

Speed-Dex 24 and 360
  • For vertical or horizontal use.
  • 5C collet spindle hardened and precision ground.
  • Spindle accuracy <.0005".
  • 24 position index plate, hardened and precision ground for 2, 3, 4, 6, 8, 12 and 24 divisions.
  • Exclusive ratchet lever design for convenient indexing in either direction as well as for direct engagement.
  • Blockouts for odd or even indexing in any 15° increment.
  • Center height 4",
  • Base 4" x 5" with 5/8" key.
Item No. List Price
111-190 Speed-Dex 24 $1670.48
pic missing
.
Item No. List Price

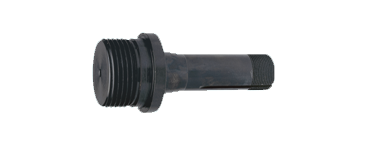

111-191 Chuck adapter 2-1/4" - 8 threaded nose, hardened & ground $263.16
111-192 Chuck adapter 2-3/16" - 10 threaded nose, hardened & ground $263.16
pic missing
.

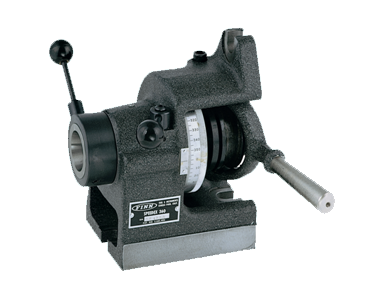

  • FINN Tool & Instruments, Inc.-Patent, No. 3661403.
  • One degree indexing. Fully engraved dial 0-360.
  • Multiple teeth engaged for extreme index accuracy.
  • Hardened and ground index wheel and taper plunger.
  • For vertical or horizontal use.
  • 5C collet spindle hardened and precision ground.
  • Spindle accuracy <.0005".
  • Exclusive ratchet lever design for convenient indexing in either direction as well as for direct engagement.
  • Center height 4".
  • 4" x 5" base with 5/8" key.
  • Chuck adapters are the same as for the above fixture
Item No. List Price
111-195 Speed-Dex 360 $1699.49
